EDGE™ 13 LED Overhead Lamp
Edge 13 LED 365nm UV-A Panel Flood Lamp with AC Control Box Also available in foreign voltages
Edge 13 LED 365nm UV-A Panel Flood Lamp with AC Control Box Also available in foreign voltages
Edge 13 LED 365nm UV-A Panel Flood Lamp with AC Control Box Also available in foreign voltages
EDGE™ 13 LED Overhead Lamp

EDG-13HC

EDGE™ 13 LED Overhead Lamp

Sale price$2,950.00
Brochure Intensity profiles User manual
 More payment options
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

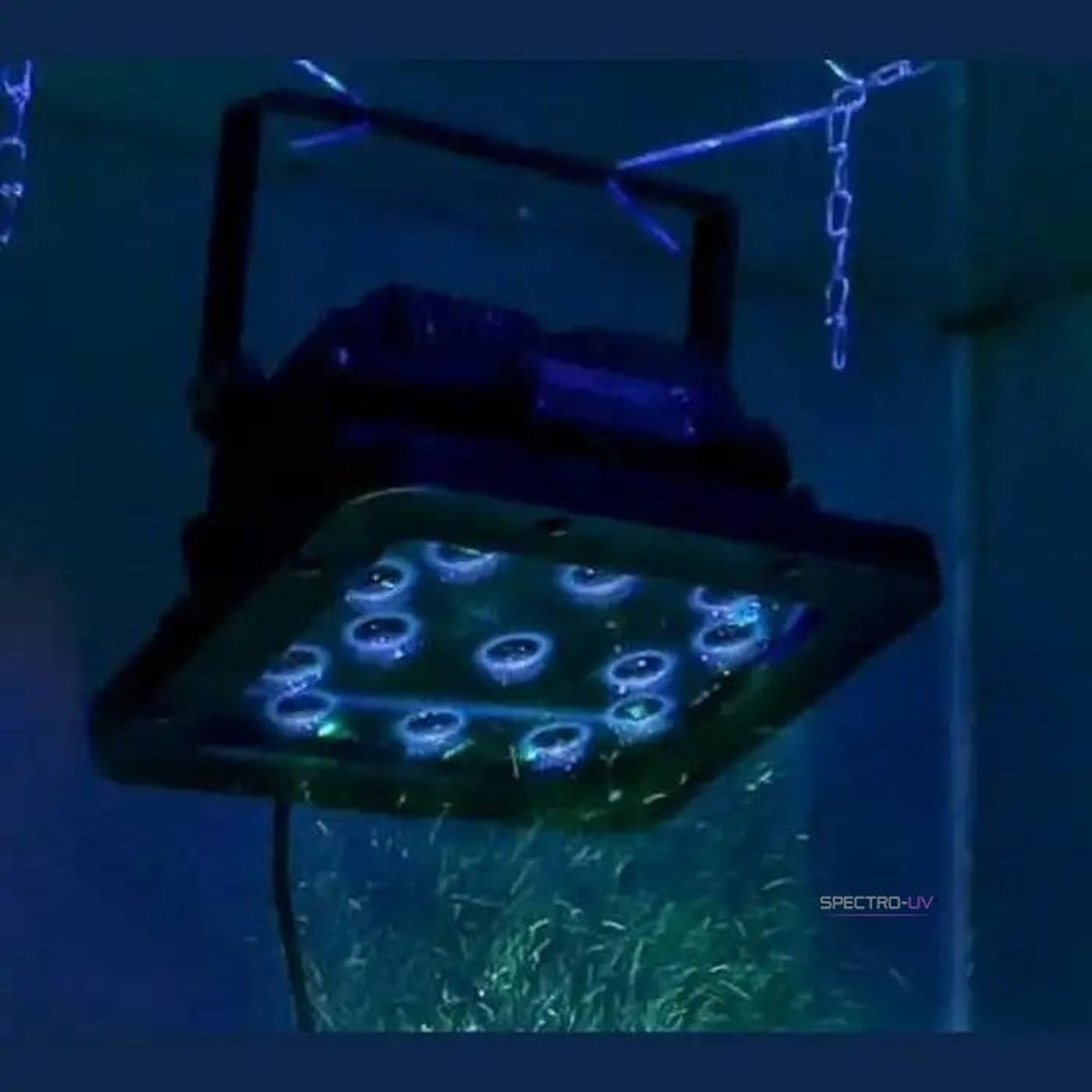

The EDG-13HC is the industry's highest intensity overhead flood lamp, delivering an exceptional 8500μW/cm² at 15" (38cm). As the first overhead LED 365nm UV-A lamp to guarantee IP65 rating, compliance, and gang-ability, it sets a new standard for professional overhead inspection lighting.

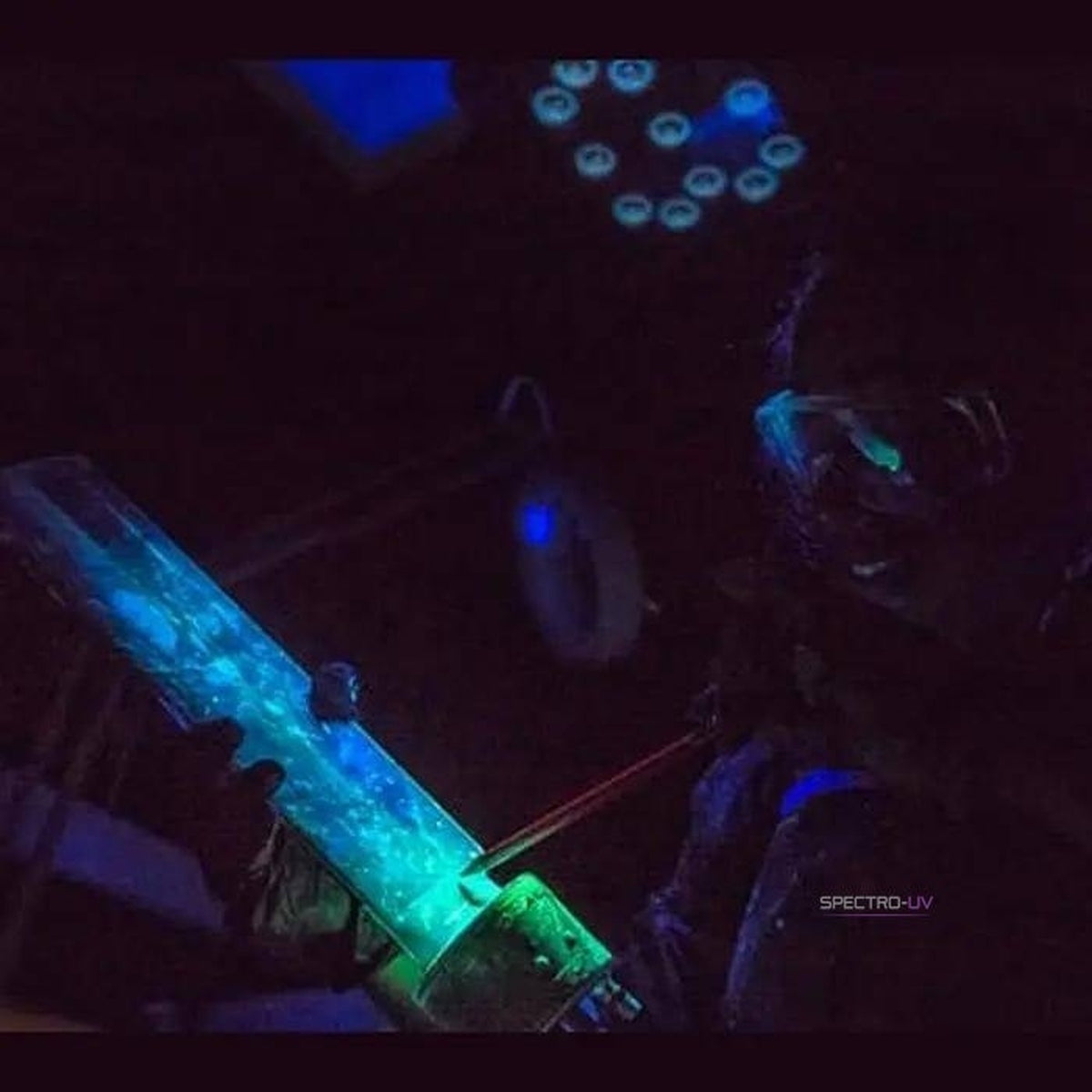

The EDG-13HC overhead lamp delivers uncompromising performance for your most demanding industrial inspection applications, combining superior intensity with rugged reliability.

  • UV-A Intensity Range: 8,500µW/cm² at 15" (38cm)
  • UV-A Coverage Area: 18 x 17 in (45 x 43 cm)
  • Visible Light Measurement: < 1 foot-candles (< 11 lux)
  • Light Source: (13) UV-A (365nm) LEDs
  • Lamp Style: Panel flood lamp
  • Length (L x W x H): 11 x 14 x 9 in. (28 x 36 x 23cm)
  • Weight: 14lbs (6.4kg)
  • Power Requirements: AC power (main AC power cord supplied with the unit) Available in 100-120V, 230V and 240V versions
  • ASTM E3022-18
  • EN ISO 3059
  • IP65 Rated

Key Features:

  • Superior Intensity: Highest intensity model in our lineup - 8500μW/cm² at 15" (38cm)
  • Maximum Coverage: Widest UV-A coverage area for comprehensive inspection capability
  • Complete Certification: Meets ASTM E3022 and EN ISO 3059 standards for reliable inspection performance
  • Premium Protection: IP65-rated dust-tight and water-resistant construction for challenging environments

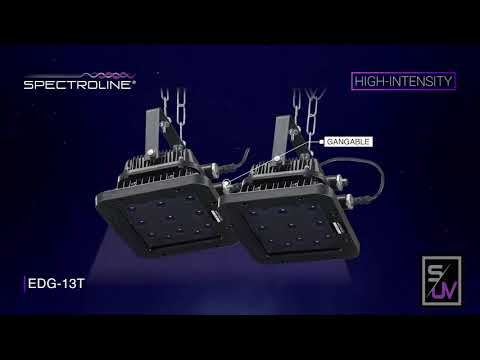

  • Versatile Mounting: Easy to mount with flexible arm and gang-able design for wider coverage areas
  • Durable Components: Long-lasting UV-A lenses with clear filter for consistent performance
  • Adaptable Design: Gang multiple units together for expanded coverage of larger inspection areas

UV-A Intensity Range: 8,500µW/cm2 at 15"(38cm).

CERTIFIED COMPLIANCE: ASTM E3022 and EN ISO 3059 approved

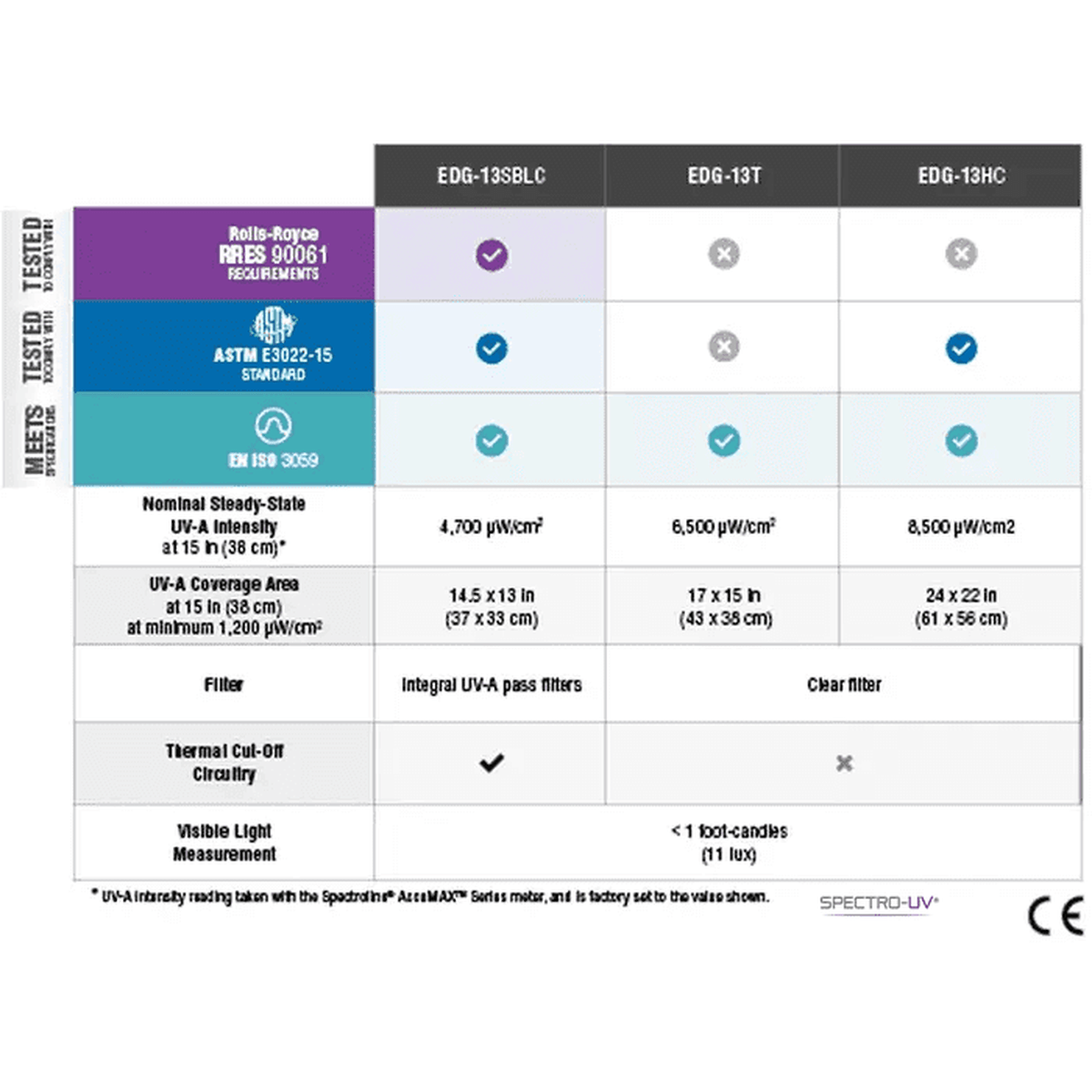

Similar model EDG-13SBLC Flood Lamp

Similar model EDG-13T Flood Lamp
Similar model PM-16B Flood Lamp

    Model & Plug Type: EDG-13HC - USA (Type A/B)

    Model & Plug Type

    You may also like
